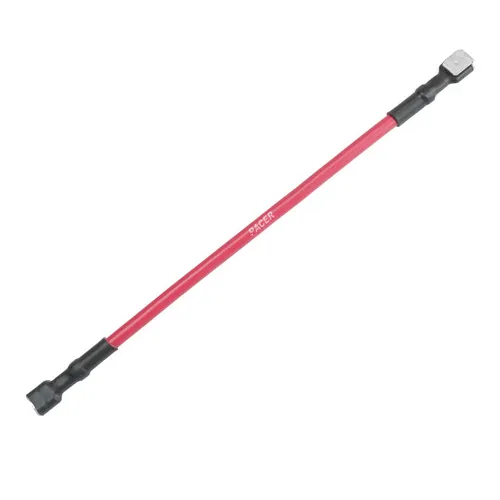

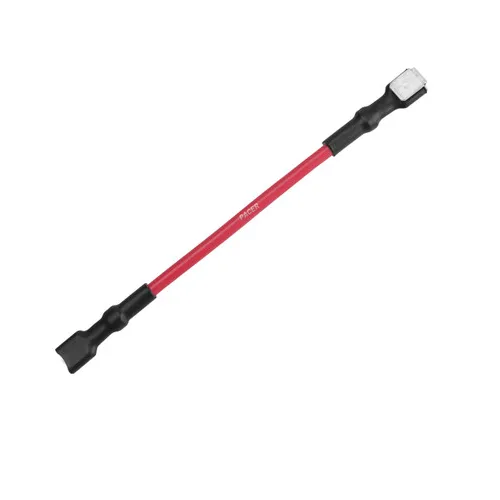

10 AWG Jumper with Disconnect and Piggyback

Also Known As:

Wire Jumpers, Piggyback Jumper, Disconnect Jumper, waterproof heat shrink, protected Jumper, tinned copper conductors

About:

Wiring the back of a panel or similar piece of equipment can be time consuming and frustrating. Having to strip, terminate and protect wires with heat shrink can take more time than one might think. By using wire jumpers, all of the hard work is already done. All you need to do is plug them in. No more striping, terminating or any of the other steps involved. 10 AWG jumpers are perfect for connecting lights from switch to switch or connecting switch light grounds. They are also used to jumper from breaker to switch. How does Pacer Group manufacture these jumpers Well, all of the wire jumpers are made from Type 3 Class K tinned copper wire. The wire is then jacketed with a durable and flexible PVC insulation. Next, they are cut to length, terminated, and protected with waterproof heat shrink. All of jumpers meet the requirements and standards of UL, NMMA, and ABYC.

Construction:

• Conductor: Annealed finely stranded tinned copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600-V
• Resistant to: acid, alkali, abrasion, flame, gasoline, oil and moisture

Standards:

• UL Stranded 1426 BC-5W2 (16-8 AWG)
• AWM 1015/1230 (22-10 AWG)
• MTW
• CSA: TEW
• ABYC: E-11.14 (16-8 AWG)
• Coast Guard: 33 CFR 183.401 Subpart 1-Electrical Systems

Features:

• Stranded, tinned copper conductors
• Highly flexible color coded insulation

Specifications:

• Size AWG: 10
• Length: 4" or 6"
• Insulation Color: Red
• Terminal 1: 0.250 Disconnect
• Terminal 2: 0.250 Disconnect Piggyback
• Part Number : 4" - EJ10RD4-250-PB
• Part Number : 6" - EJ10RD6-250-PB
